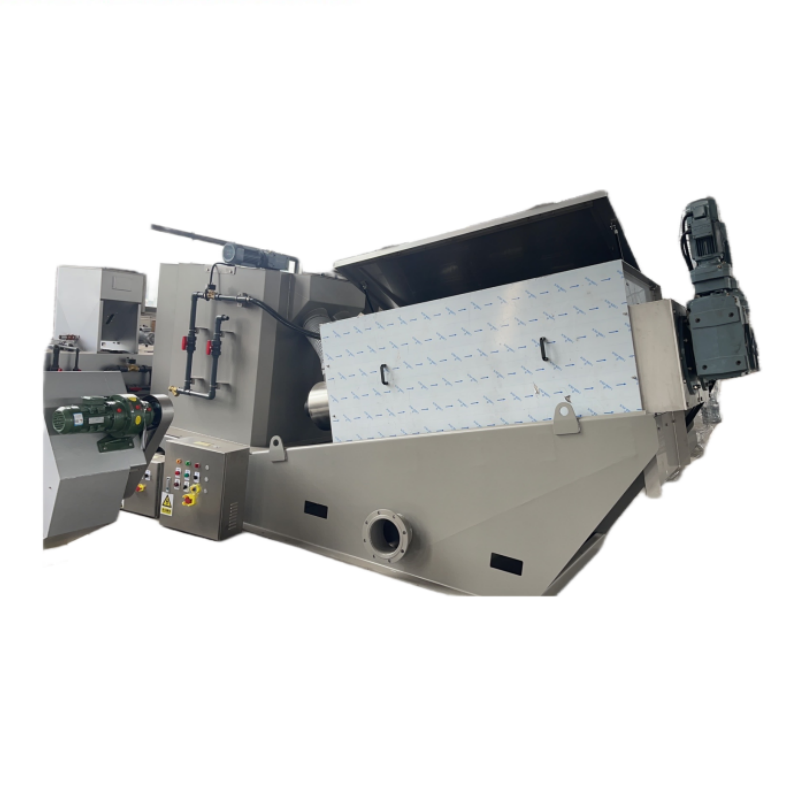

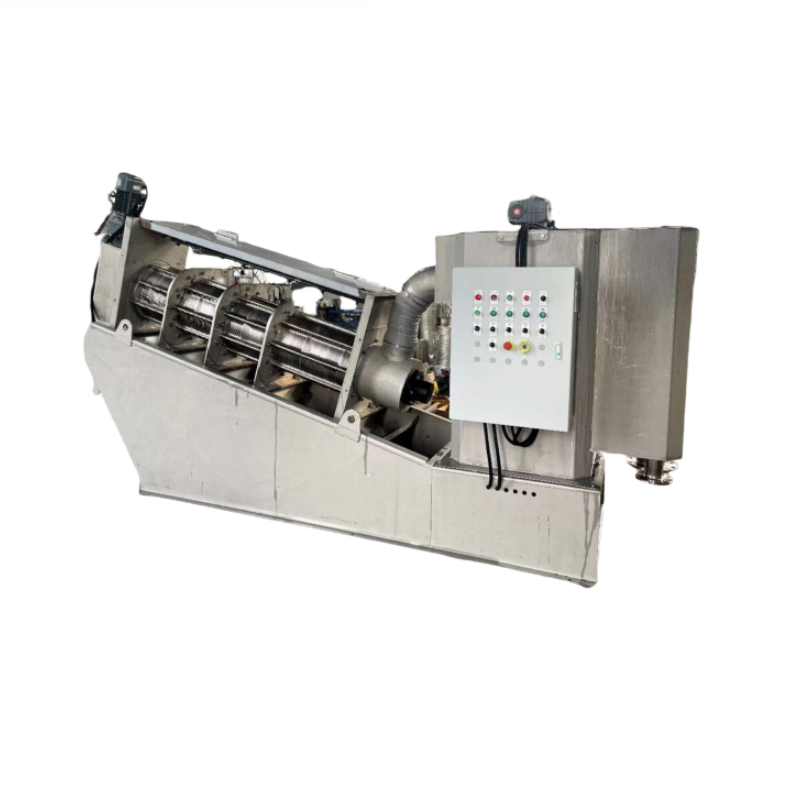

JX-DL 401 Sludge Dewatering Screw Press Stainless Steel 316

Respond to your needs within 10 minutes.
ASME/ CE/ TUV/ SGS/ BV Certification

Regular price $31,200.00
Regular price Sale price $31,200.00
Sale Sold out
Shipping calculated at checkout.
Contact us to Get Special Prices for you!
Book time with Kris: Teams Online Meeting-JX Filtration

Sludge Dewatering Press is mainly designed for the purpose of dewatering the organic sludge. It reaches the goal of extrusion dewatering sludge by the powerful extrusion pressure of changing the screw diameter and distance, and the tiny spacing between movable annular plates and fixed annular plates.

Below are some specification for reference:

Main

Totally dry mud treatment capacity: 130-160kg/hr
Equipment size: L4550* W1180*H2250
Equipment weight: 2050kg
Total power: 3kw

Main Body

Dia.* Length: DN400*3100mm
Qty: 1 unit
Material: SS316
Control method: Each screw can be openned or stopped independently

Screw shaft

Dia. * Length: φ350*3022mm
Qty: 1pcs
Material SS316
Hardness: 1100HV

Flocculation mixing tank

Size: 800*700*1350mm
Qty: 1set
Material: SS316
Volume: 0.76m3
Sewage inlet: DN80 outer thread (G2”)
Overflow port: DN150 flange(JB/T81-94PN1.0MPa)
Dosing port: DN50 male thread (G¾’)
Vent: DN150 (JB/T81-94,PN1.0MPa)
