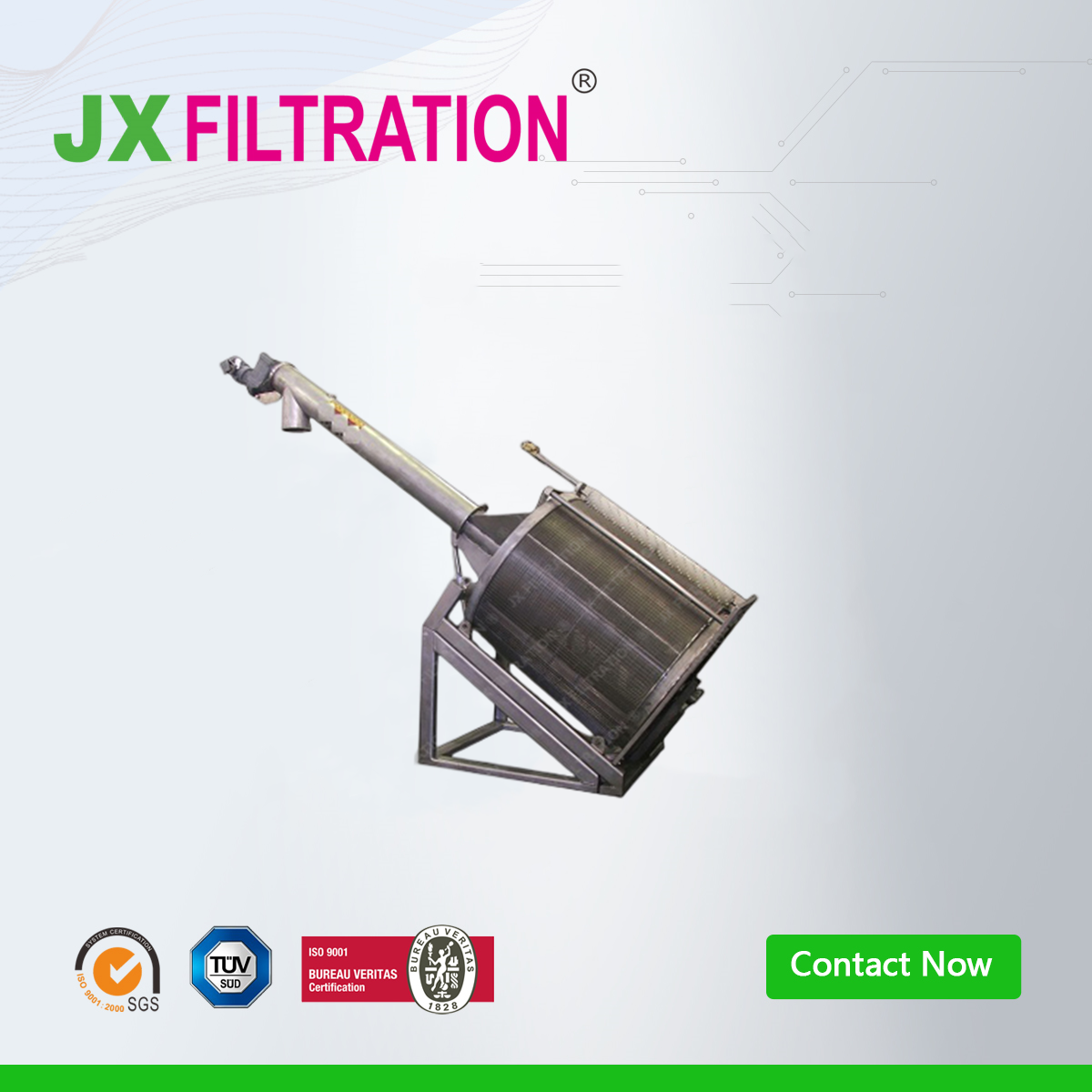

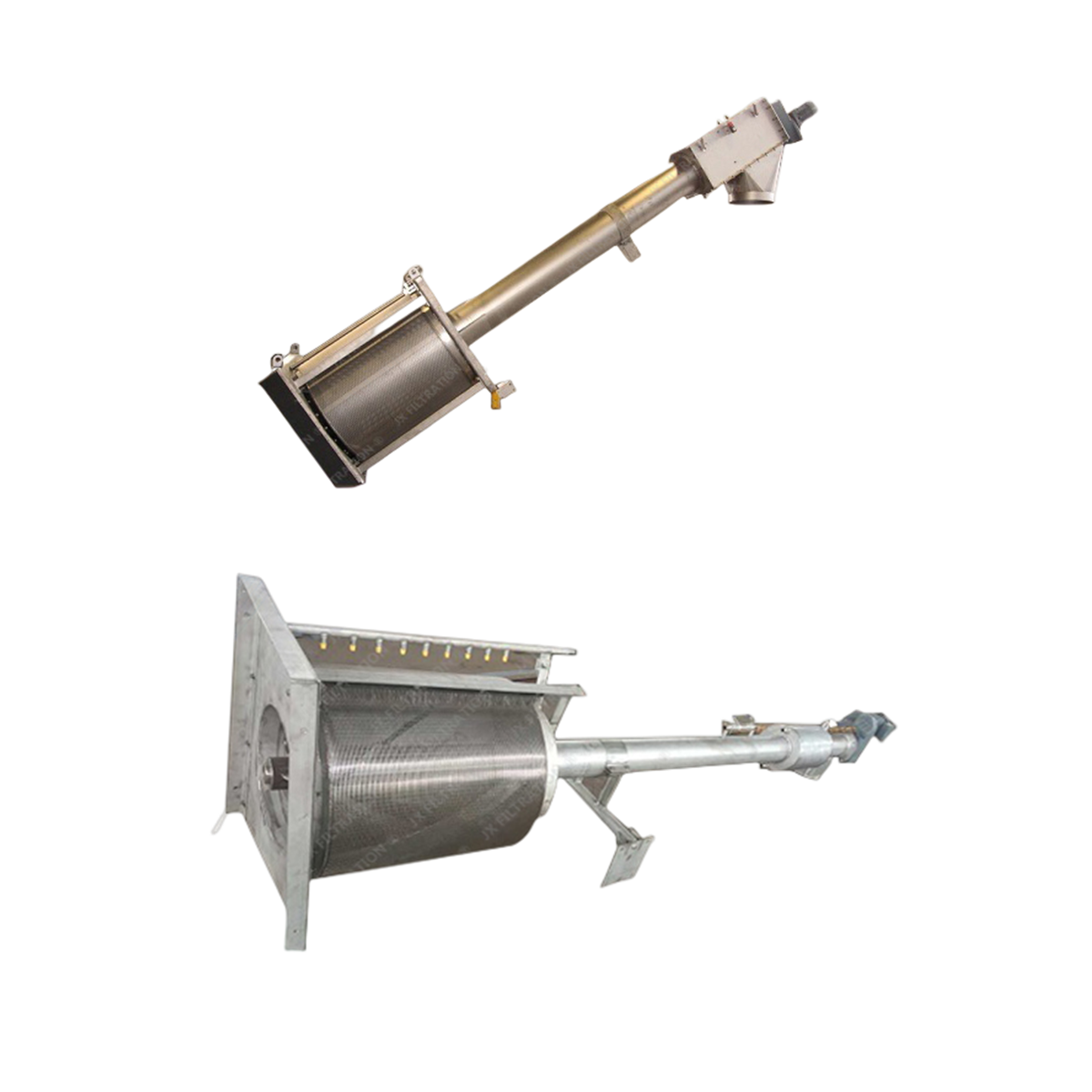

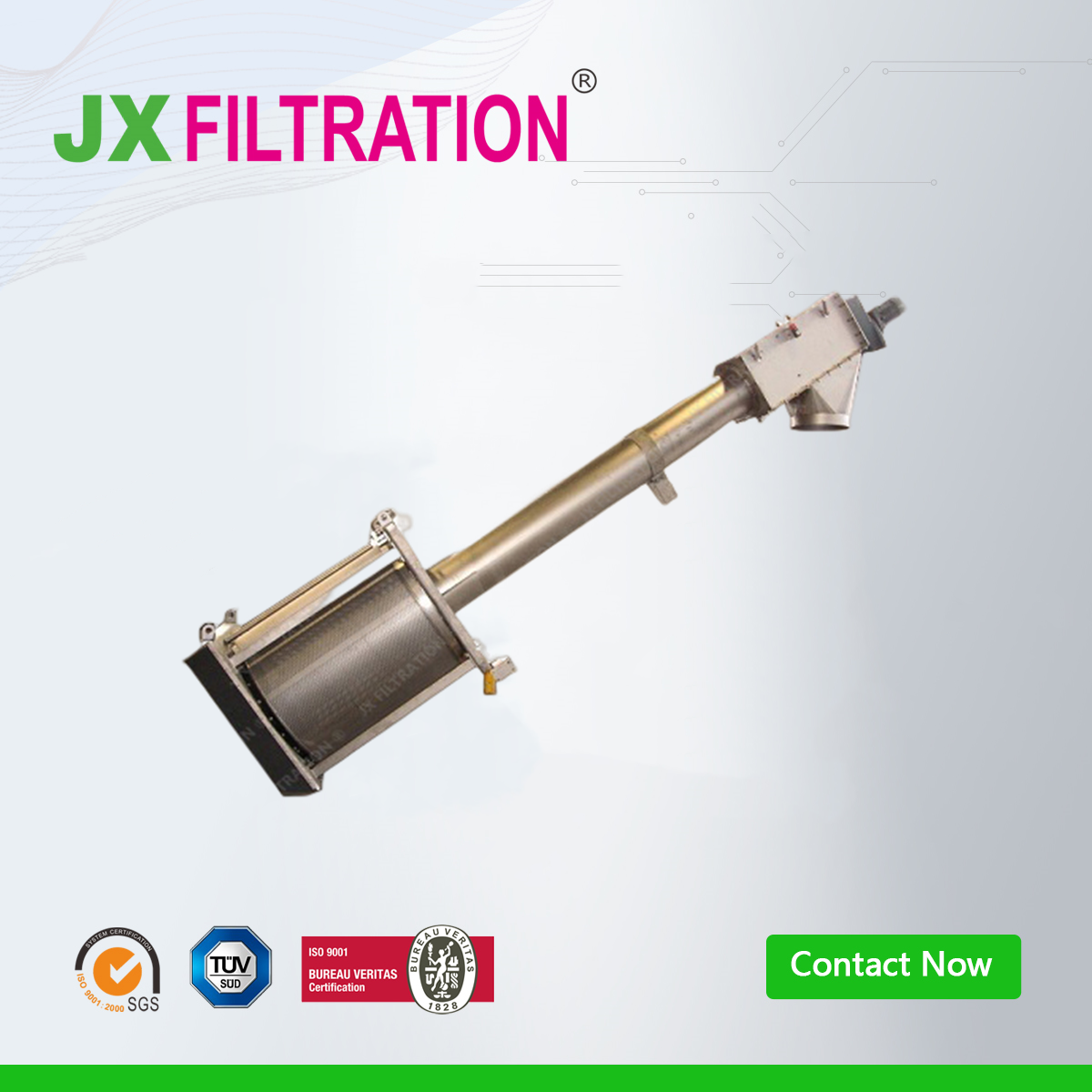

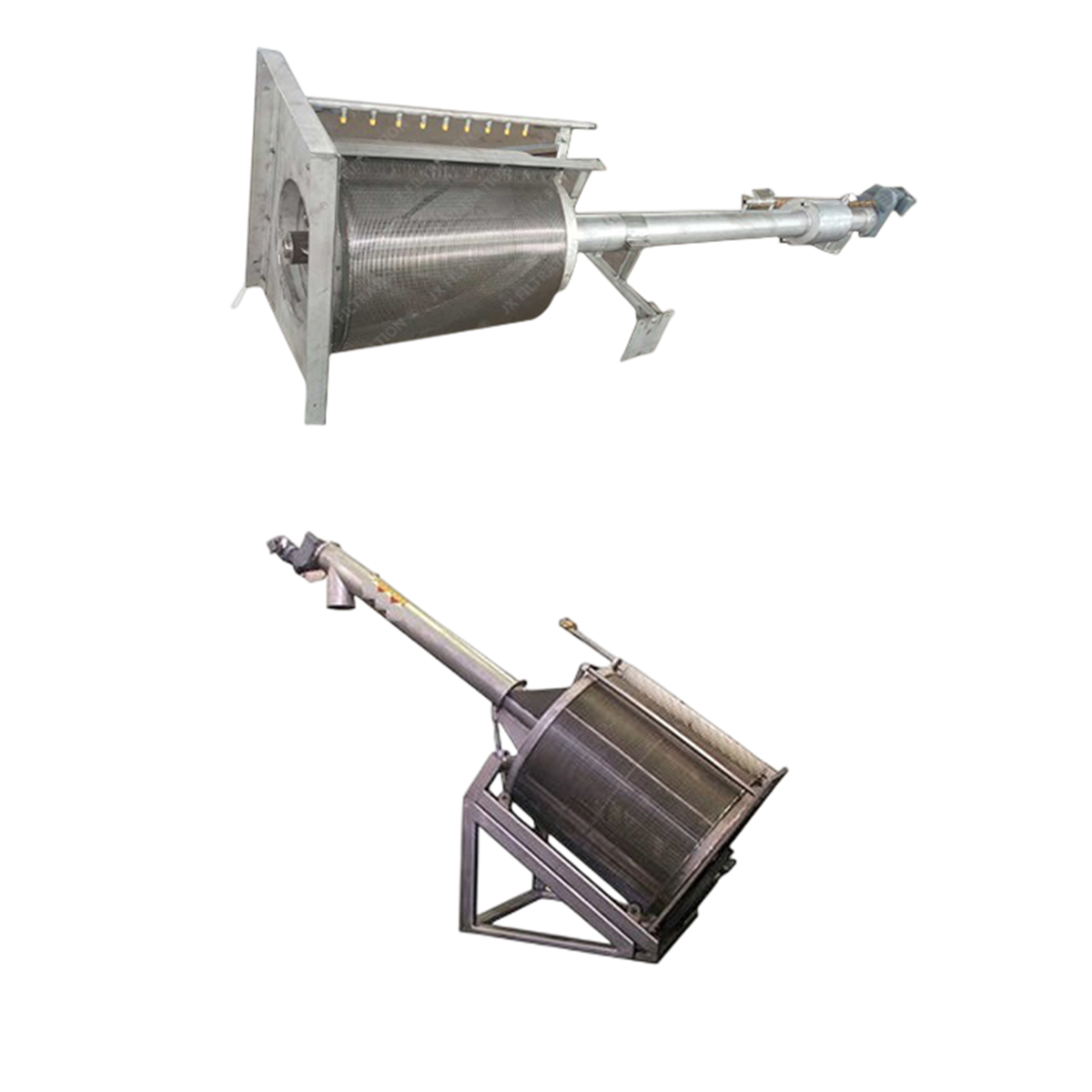

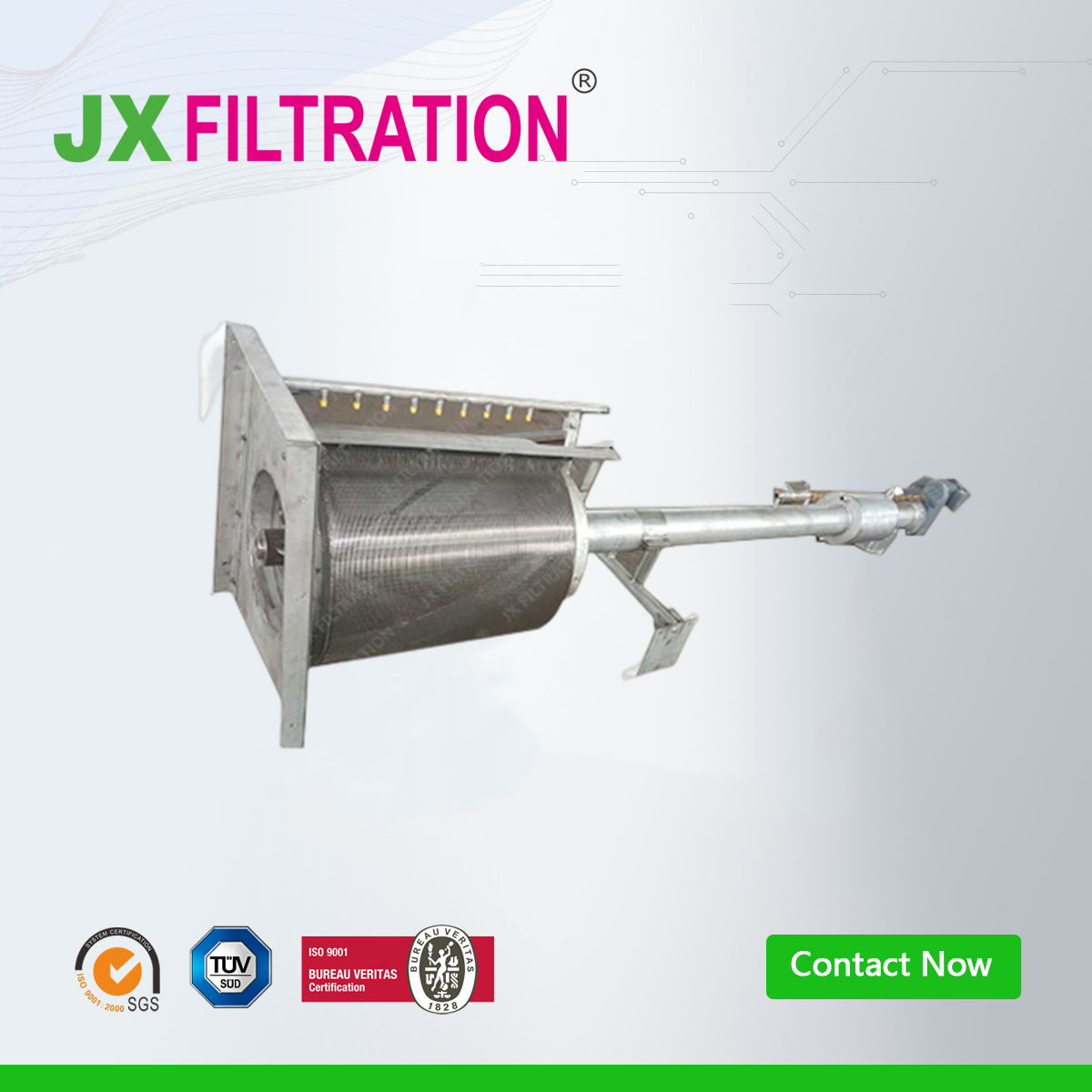

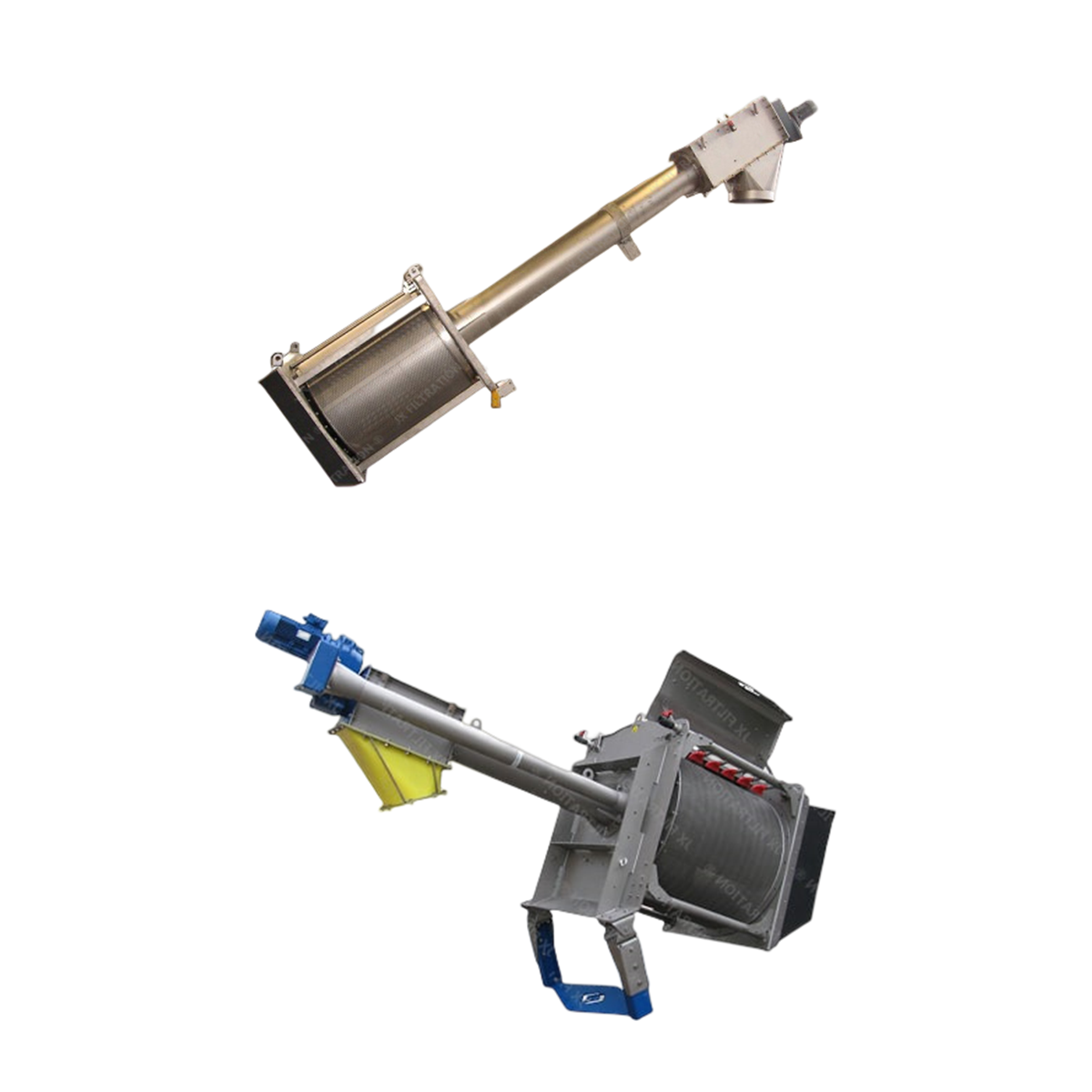

JXCR-800 Channel Drum Screens

Size
Material

Respond to your needs within 10 minutes.
ASME/ CE/ TUV/ SGS/ BV Certification

Regular price $5,000.00
Regular price Sale price $5,000.00
Sale Sold out
Shipping calculated at checkout.
Contact us to Get Special Prices for you!
Book time with Julie: Teams Online Meeting-JX Filtration

Channel Drum Screens are widely used in wastewater treatment of municipal wastewater, industrial wastewater, food processing industry, paper making industry, ect. This equipment can remove the scum, short fiber and suspended solids from the water intake and then discharge them after pressing.

Channel Drum Screens are integrated machines consisting of a drum screen, screw conveyor and compactor. Effluent enters the screen drum and solids are captured. When the drum rotates the solids fall into the spiral conveyor. The spiral feeds the screenings into a compactor where they are compressed and disposed. Screen water continues downstream. The rotating screen drum ensures screen does not blind. Filtration rates of between 1-7 mm are available, alongside flow rates of up to 7600 m3/h.

Housing constructed out of high quality 304 stainless steel to ensure years of trouble free operation. Spiral manufactured out of carbon steel with optional 304 stainless steel construction. Nylon cleaning brushes bolted to spiral. Spiral Rotary Drum Screens can be supplied for direct installation into a channel or as a complete package inside a stainless steel tank with or without the option of a bypass rake screen. Continuous bagging systems are available to receive screenings and abate odour, the screenings can then be sealed without any personal contact. Options for 316 Stainless steel area available.
