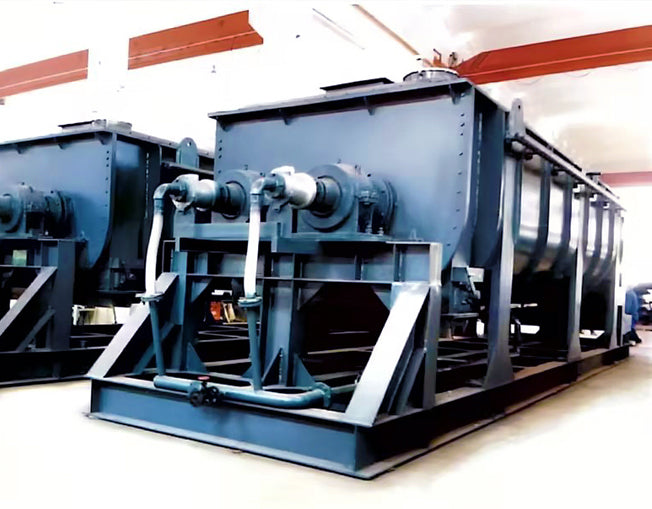

JXJG-90 Hollow Paddle Dryer
Respond to your needs within 10 minutes.
ASME/ CE/ TUV/ SGS/ BV Certification
Couldn't load pickup availability
The JXJG-90 Hollow Paddle Dryer is a highly efficient, conduction-based drying system designed for sludge and other high-moisture materials. It uses a double-shaft, hollow paddle structure with indirect heating (via steam or thermal oil) to achieve uniform drying, low dust emissions, and excellent thermal efficiency.
Key Advantages
-
High thermal efficiency (80–90%) with low steam consumption
-
Self-cleaning paddle design prevents material build-up
-
Low dust carryover, environmentally friendly operation
-
Suitable for high-moisture materials (initial moisture up to 80%)
-
Continuous operation with adjustable residence time
Technical Parameters
| Item | Specification |
| Total heat exchange area | 90 m² |
| Air Heat Exchanger | 50m² |
| Processing capacity | 1120 kg/h (wet feed) |
| Initial moisture content | 80% |
| Final moisture content | 10–20% |
| Paddle Shaft Qty | 2 pcs |
| Drive Motor | 55KW Frequency Converter |
| Overall dimensions (L×W×H) | 9800x2500x2600 mm |
Contact us for more details!
