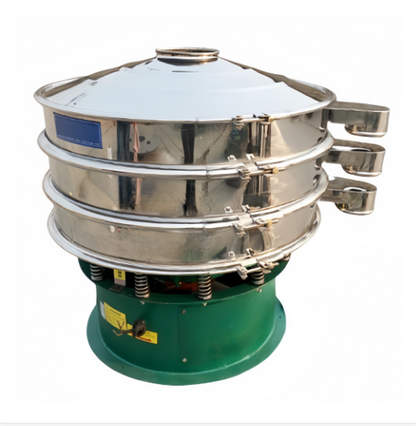

JXRVS-600-2S Rotary Vibrating Sieve Screen
Respond to your needs within 10 minutes.
ASME/ CE/ TUV/ SGS/ BV Certification
Couldn't load pickup availability
The Rotary Vibrating Sieve Screen is a high-efficiency screening machine widely used for solid-solid and solid-liquid separation in various industries such as food, chemical, pharmaceutical, and metallurgy. Driven by a vertical motor, it generates multi-dimensional vibrations, enabling precise separation and classification.
Key Features:
🔹 Accurate Screening:
Supports 1 to 5 layers of mesh for multi-grade separation with high precision.
🔹 Versatile Applications:
Capable of handling dry powders, granules, slurries, and viscous materials.
🔹 Easy to Clean & Maintain:
Quick-release clamps allow for fast disassembly and screen changes.
🔹 Compact & Low Noise:
Small footprint with minimal operational noise and vibration.
🔹 Durable Structure:
304/316L stainless steel contact parts ensure corrosion resistance and long service life.
🔹 Customizable Mesh Size:
Mesh opening can be customized from 20 microns to several millimeters, depending on your process needs.
Whether you're classifying raw materials or filtering liquids, the rotary vibrating sieve screen ensures clean, efficient, and continuous operation.
Main Parameters
| Item | Unit | Specification | Remarks |
|---|---|---|---|
| Screen Diameter | mm | Ф600 | |
| Mesh Size | μm | Refer to the specification in the price list | |
| Power | kW | 0.55 | |
| Overall Dimension | mm | 954x954x850 | |
| Overall Weight | kg | 140 |
Equipment Material
| Item | Material | Specification | Remarks |
|---|---|---|---|
| Upper Lid | SS304 | Thickness: 0.8 mm | Mirror polished, food-grade treatment |
| Upper Frame | SS304 | Thickness: 2.0 mm | Mirror polished, food-grade treatment |
| Lower Frame | SS304 | Thickness: 2.0 mm | Mirror polished, food-grade treatment |
| Screen | Woven screen | ||
| Vibrating Device | Carbon Steel Q235 | Thickness: 4.0 mm | Mirror polished |
| Base | Carbon Steel Q235 | Thickness: 3.0 mm | Mirror polished |
| Springs | Galvanized Iron | 8pc | |
| Sealing Rings | Silicone Rubber | ||
| Motor | Cast Iron Shell with Copper Core |
Contact us for more details!
