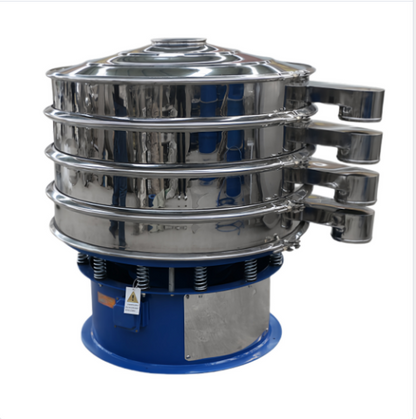

JXRVS-800-3S Rotary Vibrating Sieve Screen

Material

Respond to your needs within 10 minutes.
ASME/ CE/ TUV/ SGS/ BV Certification

$3,270.00
$3,270.00
Sale Sold out
Shipping calculated at checkout.
Contact us to Get Special Prices for you!
Book time with Kris: Teams Online Meeting-JX Filtration

The Rotary Vibrating Sieve Screen is a high-efficiency screening machine widely used for solid-solid and solid-liquid separation in various industries such as food, chemical, pharmaceutical, and metallurgy. Driven by a vertical motor, it generates multi-dimensional vibrations, enabling precise separation and classification.

Key Features:

🔹 Accurate Screening:
Supports 1 to 5 layers of mesh for multi-grade separation with high precision.

🔹 Versatile Applications:
Capable of handling dry powders, granules, slurries, and viscous materials.

🔹 Easy to Clean & Maintain:
Quick-release clamps allow for fast disassembly and screen changes.

🔹 Compact & Low Noise:
Small footprint with minimal operational noise and vibration.

🔹 Durable Structure:
304/316L stainless steel contact parts ensure corrosion resistance and long service life.

🔹 Customizable Mesh Size:
Mesh opening can be customized from 20 microns to several millimeters, depending on your process needs.

Whether you're classifying raw materials or filtering liquids, the rotary vibrating sieve screen ensures clean, efficient, and continuous operation.

Main Parameters

Item Unit Specification Remarks
Screen Diameter mm Ф800
Mesh Size μm Refer to the specification in the price list
Power kW 0.75
Overall Dimension mm 1090x1096x820
Overall Weight kg 240



Equipment Material

Item Material Specification Remarks
Upper Lid SS304/SS316 Thickness: 0.8 mm Mirror polished, food-grade treatment
Upper Frame SS304/SS316 Thickness: 2.0 mm Mirror polished, food-grade treatment
Lower Frame SS304/SS316 Thickness: 2.0 mm Mirror polished, food-grade treatment
Screen Perforated Mesh/Woven Mesh Customizable
Vibrating Device Carbon Steel Q235 Thickness: 4.0 mm Mirror polished
Base Carbon Steel Q235 Thickness: 3.0 mm Mirror polished
Springs Galvanized Iron 8pc
Sealing Rings Silicone Rubber
Motor Cast Iron Shell with Copper Core
