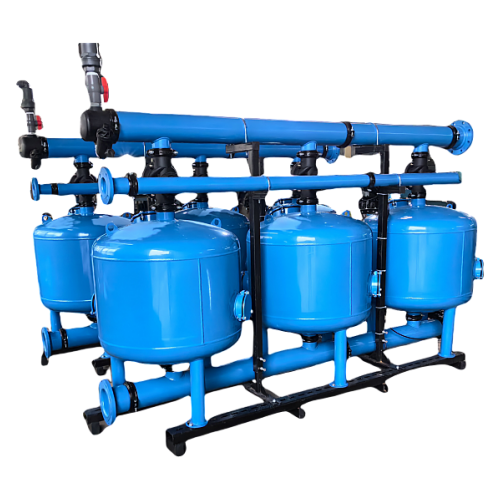

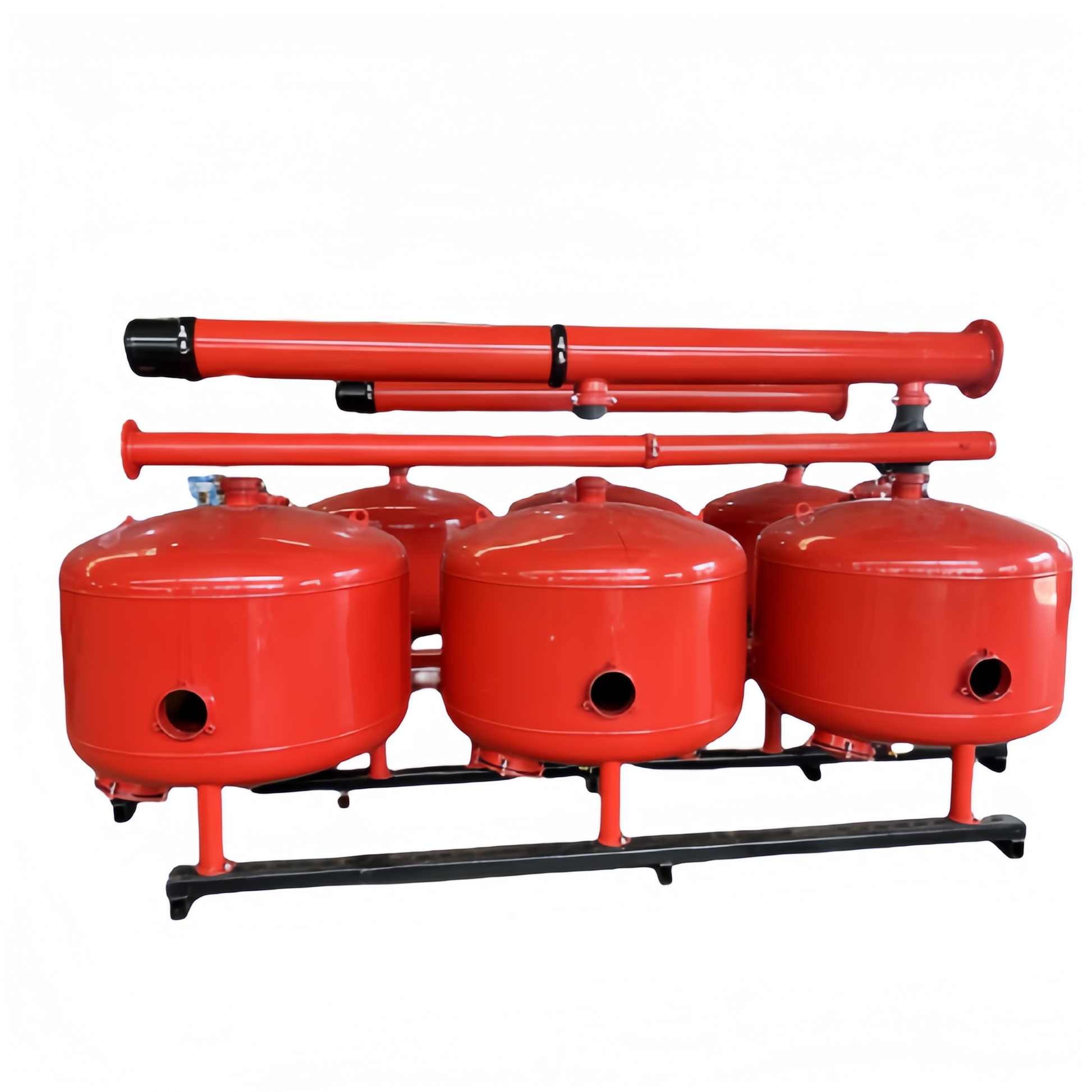

JX-SL24-3 Shallow Sand Filter

JX-SL24-3

Respond to your needs within 10 minutes.
ASME/ CE/ TUV/ SGS/ BV Certification

$2,000.00
$5,500.00 $2,000.00
Sale Sold out
Shipping calculated at checkout.
Contact us to Get Special Prices for you!

The shallow sand filter is a high-performance water treatment device that uses quartz sand to effectively remove suspended solids, turbidity, and other impurities from water. Operated under pressure, water flows through a compact sand bed, achieving efficient filtration with minimal resistance.

Key Features:

  • High Filtration Efficiency: Effectively removes suspended solids, colloids, organic matter, iron, manganese, and microorganisms.

  • Low Resistance: Ensures high flow rates and energy savings.

  • Durable Media: Quartz sand offers strong resistance to acid, alkali, and fouling.

  • Self-Adjusting Filter Bed: Forms a layered structure (“loose on top, dense at bottom”) for stable performance across various raw water conditions.

  • Effective Backwashing: Ensures full media expansion and thorough cleaning.

Applications:
Widely used in power plants, electronics, municipal water, petrochemical, food & beverage, textiles, and swimming pool systems—for process water, domestic use, and wastewater polishing.

General Specification

Item Specification
Model JX-SL24-3
Total Capacity ~45 m³/h
Material Carbon steel
Working Pressure 0.6 MPa
Design Pressure 1.0 MPa
Design Temperature 80 °C
Dimensions (L×W×H) 2520 × 950 × 1795 mm
Total Weight /



Contact us for more details!
