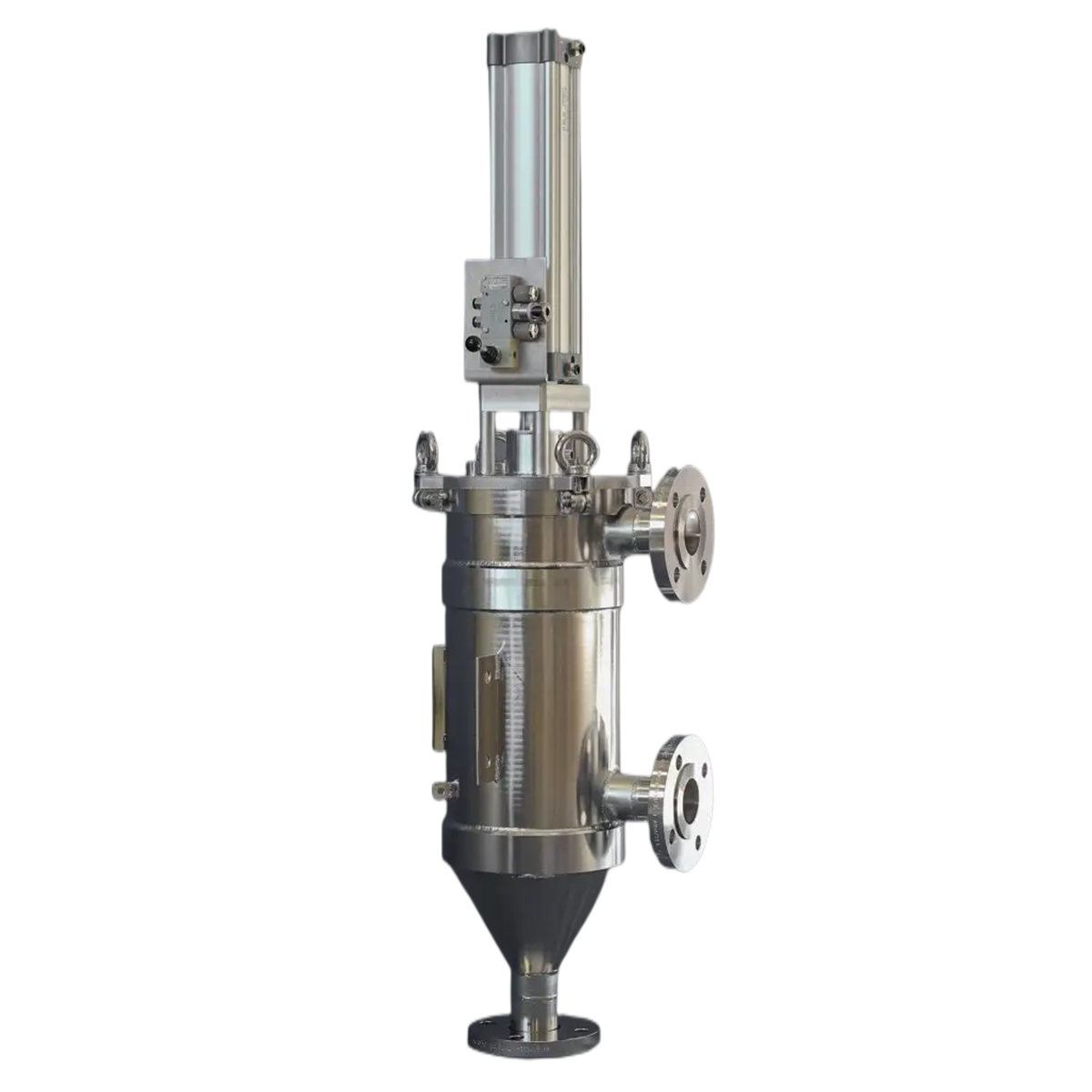

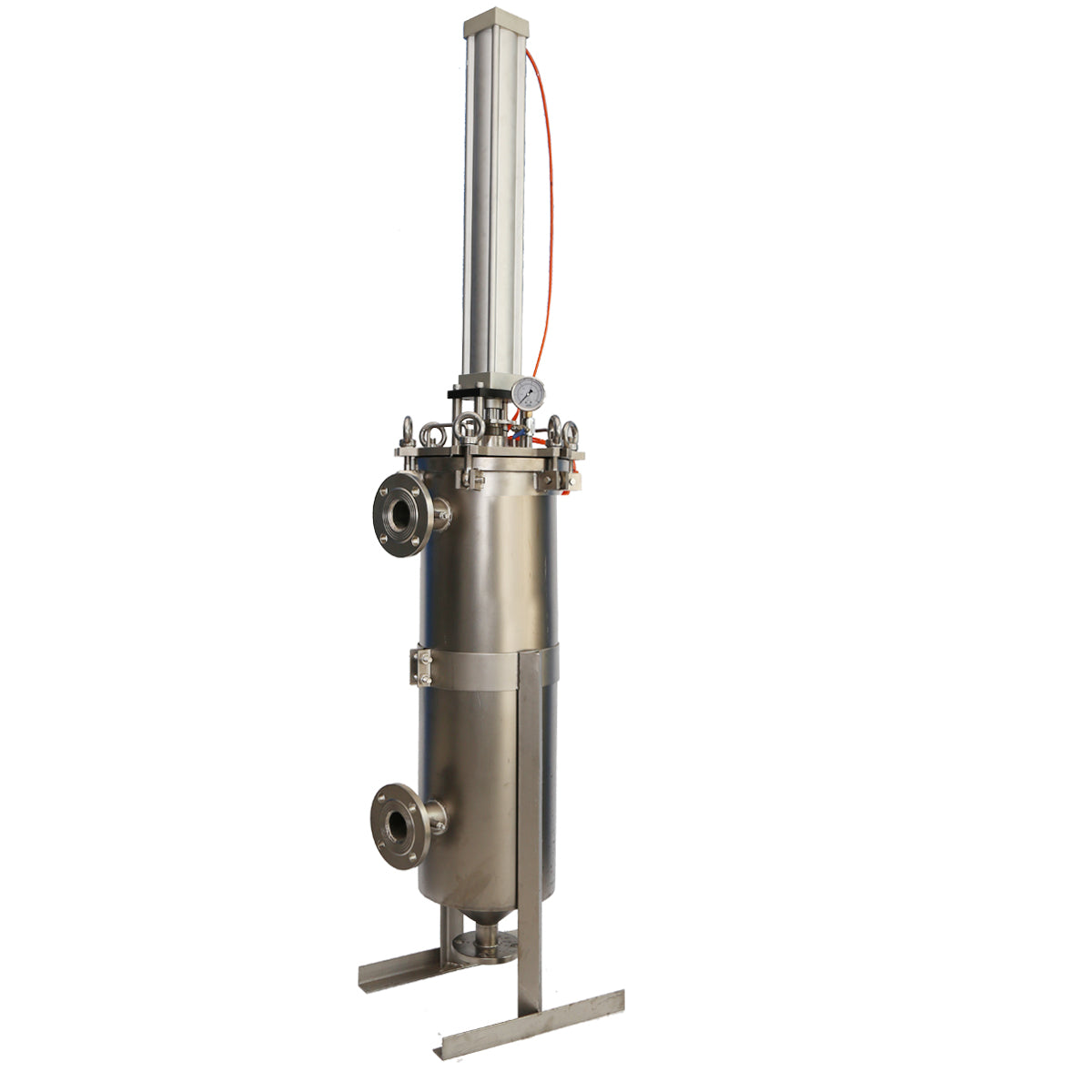

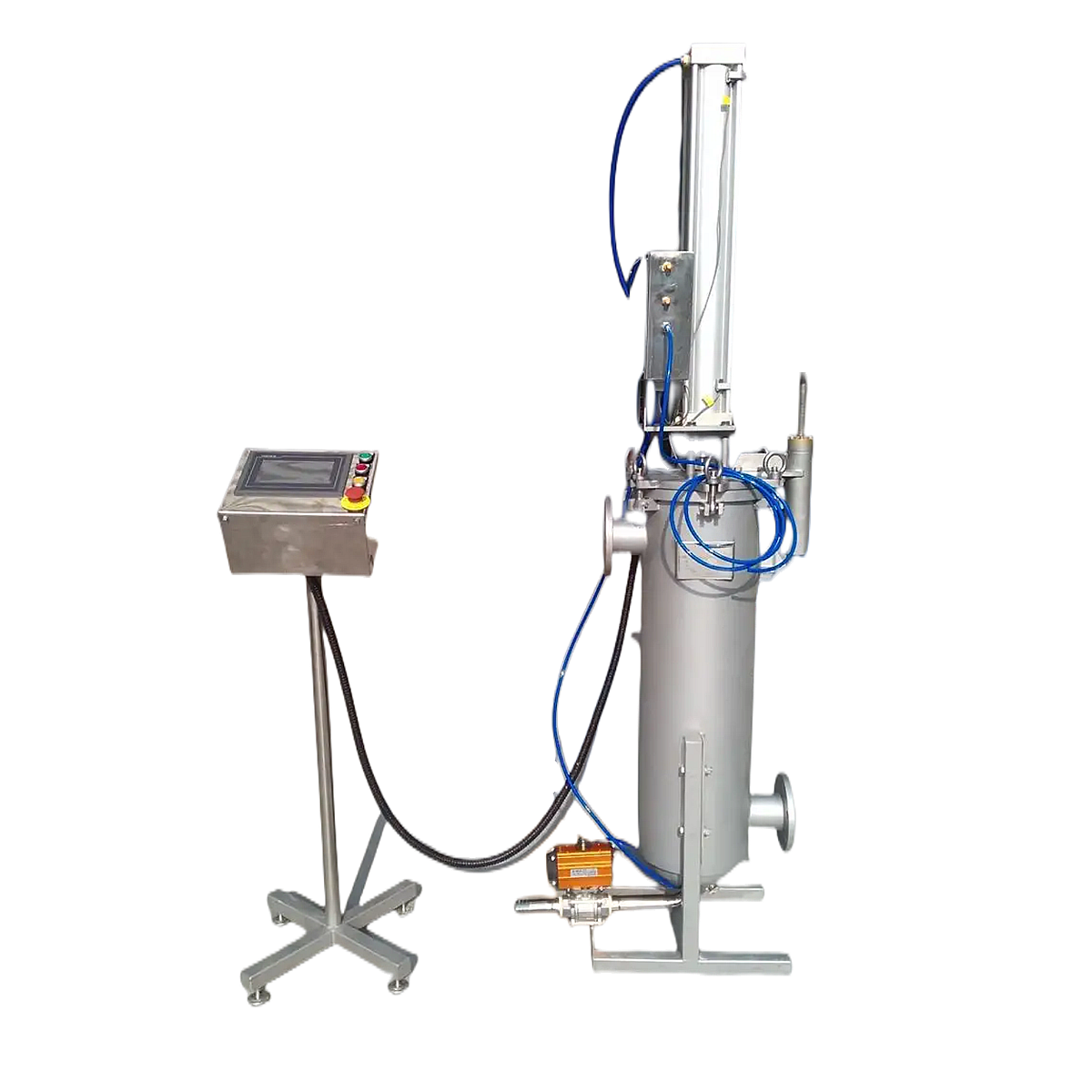

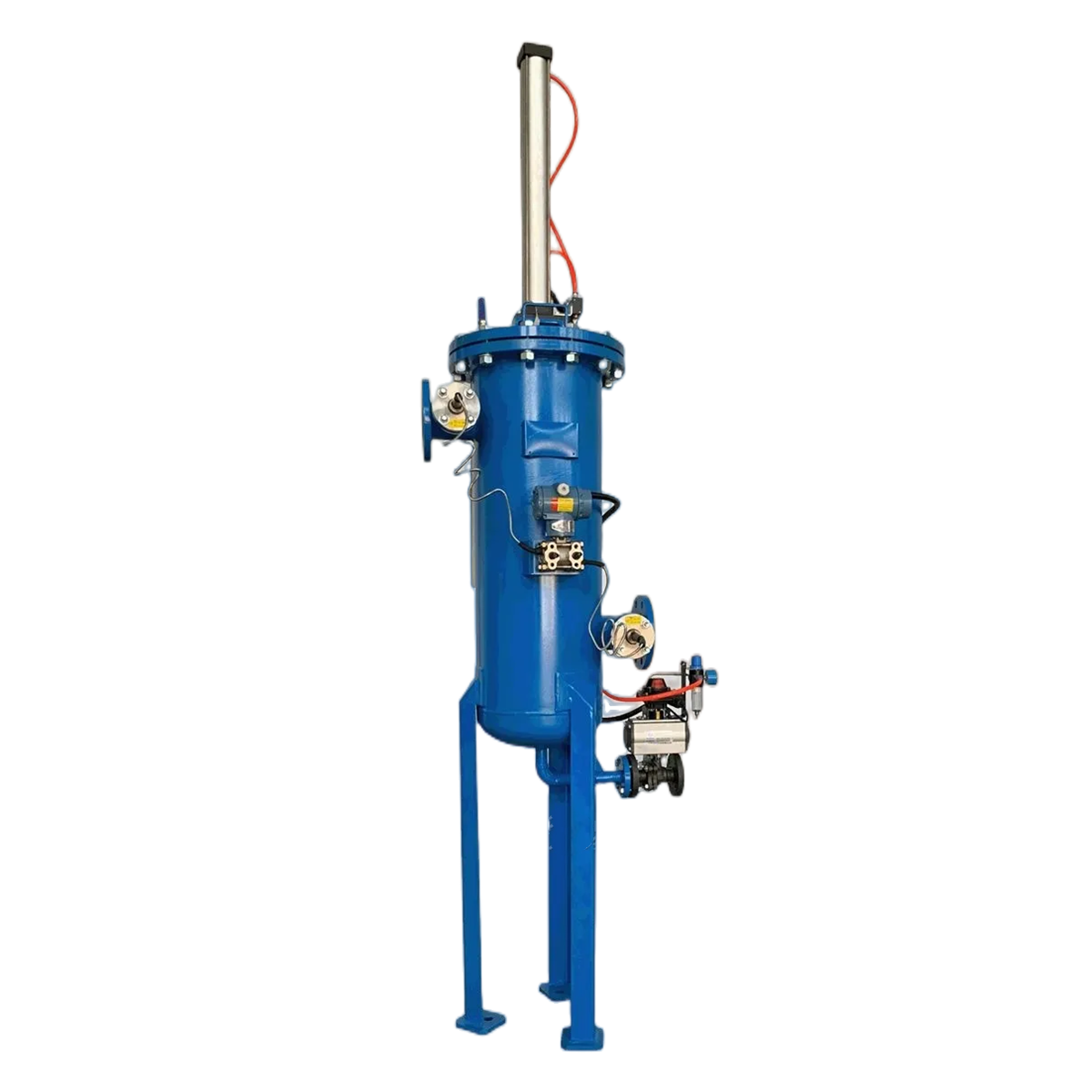

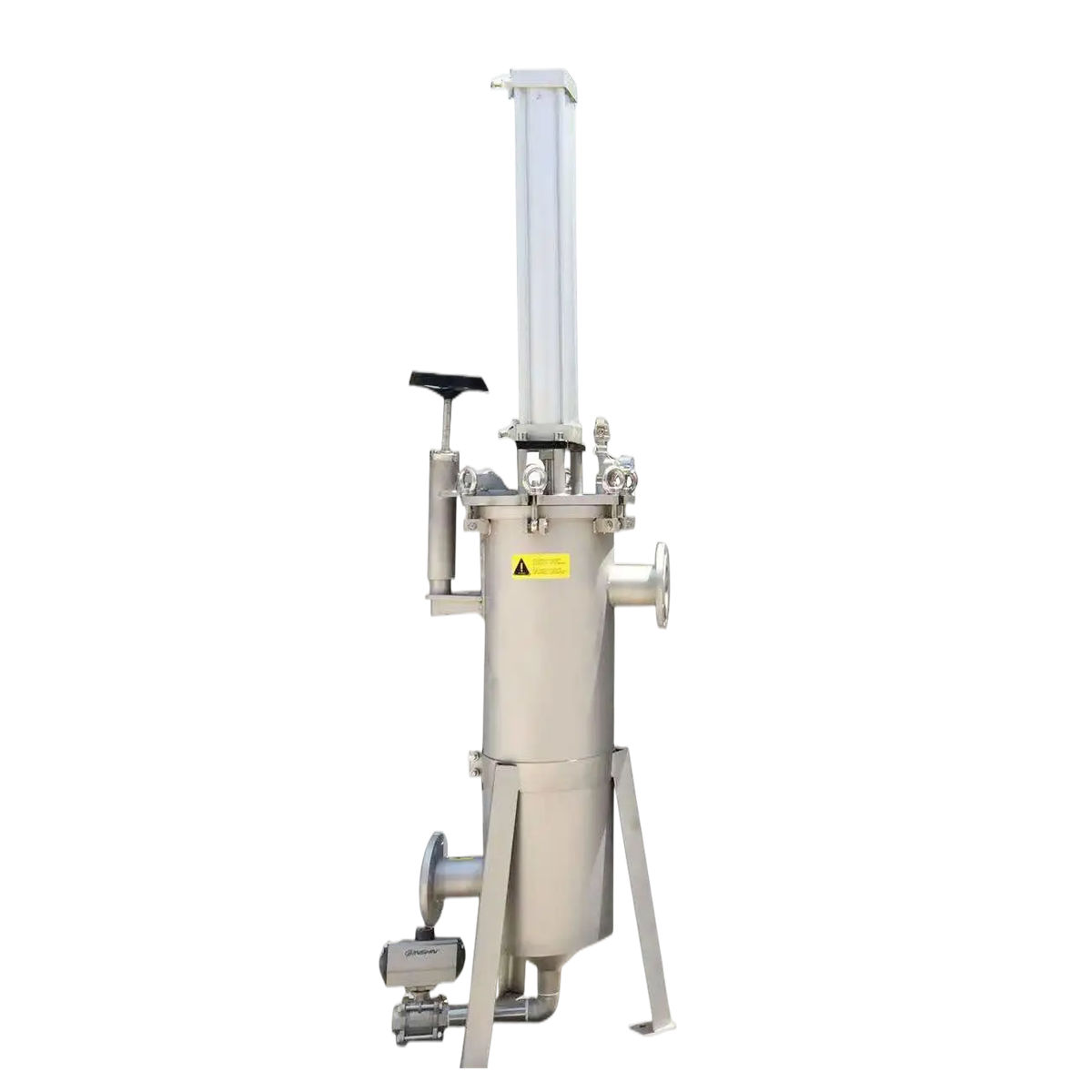

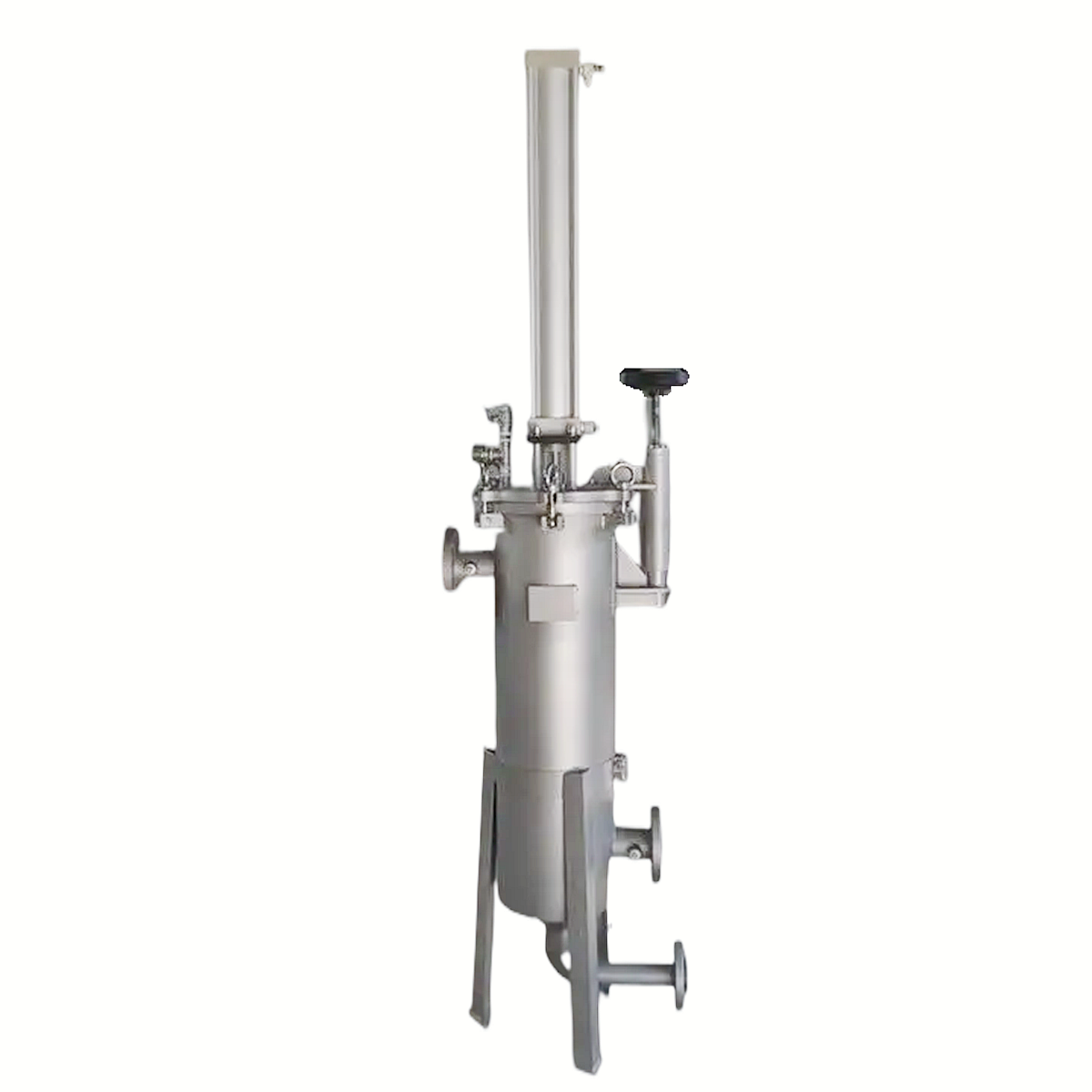

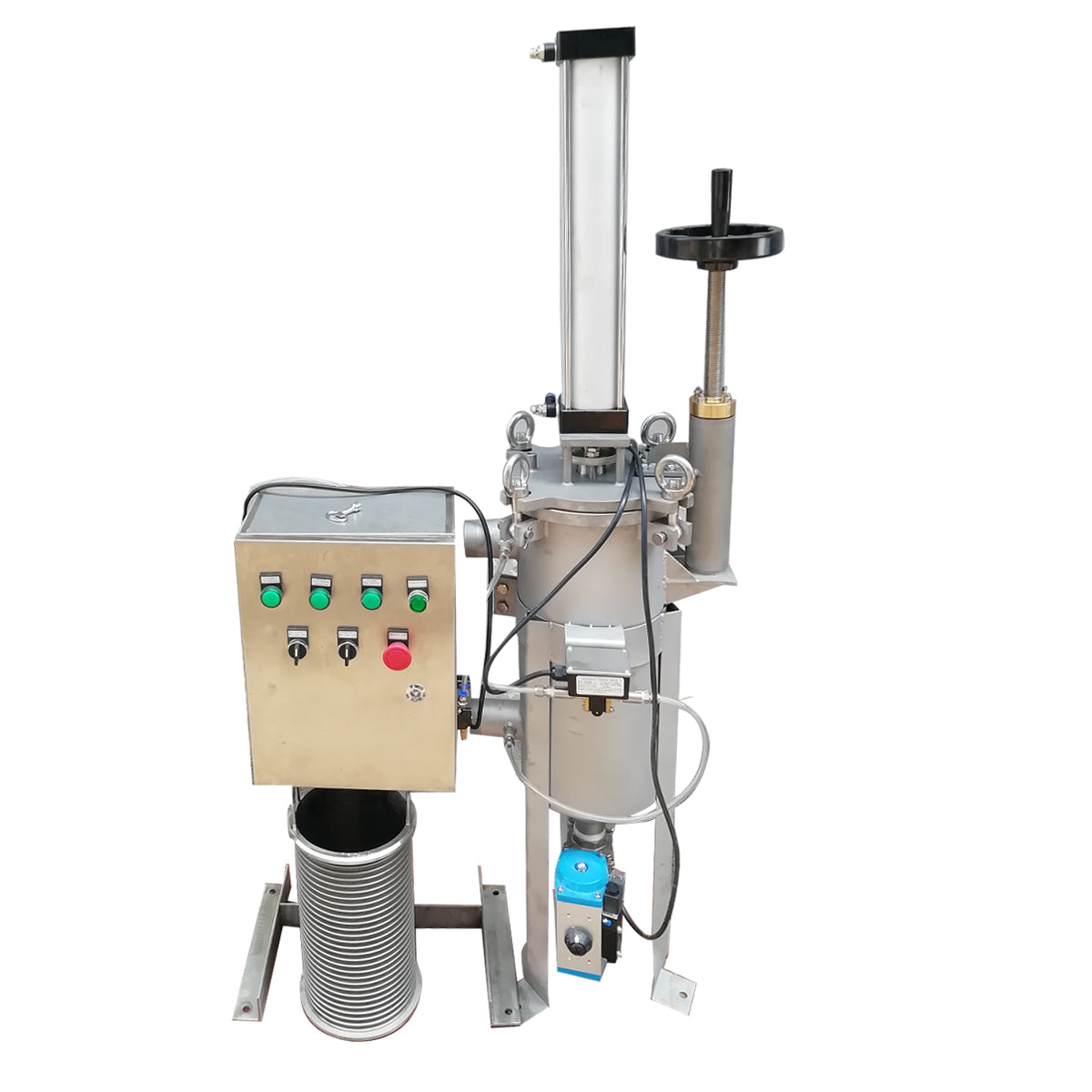

Pneumatic Self Cleaning Filter

Pneumatic Self Cleaning Filter is a fully automatic internal pressure filtration equipment. It is driven by compressed air (pressure between 4 and 5 Kg/cm²) to scrape off the impurities retained on the inner surface of the filter screen. It is suitable for working conditions such as precision 10-300 microns and the filtration of general and high-viscosity liquids.

Structure

Technical data

• Capacity: 5-350m3/h
• Filtration area: 0.08-2.1m2
• Construction material: SS304, 316, super duplex 2205 etc.
• Screen type: vertical inner circle wedge mesh/composite mesh/wedge wire screen
• Filter precision: 10-300um
• Cleaning type: PTFE ring scraper/ stainless steel brush (can be customized)
• Applicable viscosity: 1-800000 cp.s
• Special pressure loss requirements can be customized
• Control mode: time/ pressure difference/ manual control
• Motor and control cabinet: Siemens or Schneider (can be customized)

Services

• Professitional model selection
• Customized design
• Free drawing
• Free install and operate instruction
• Free pacakge
