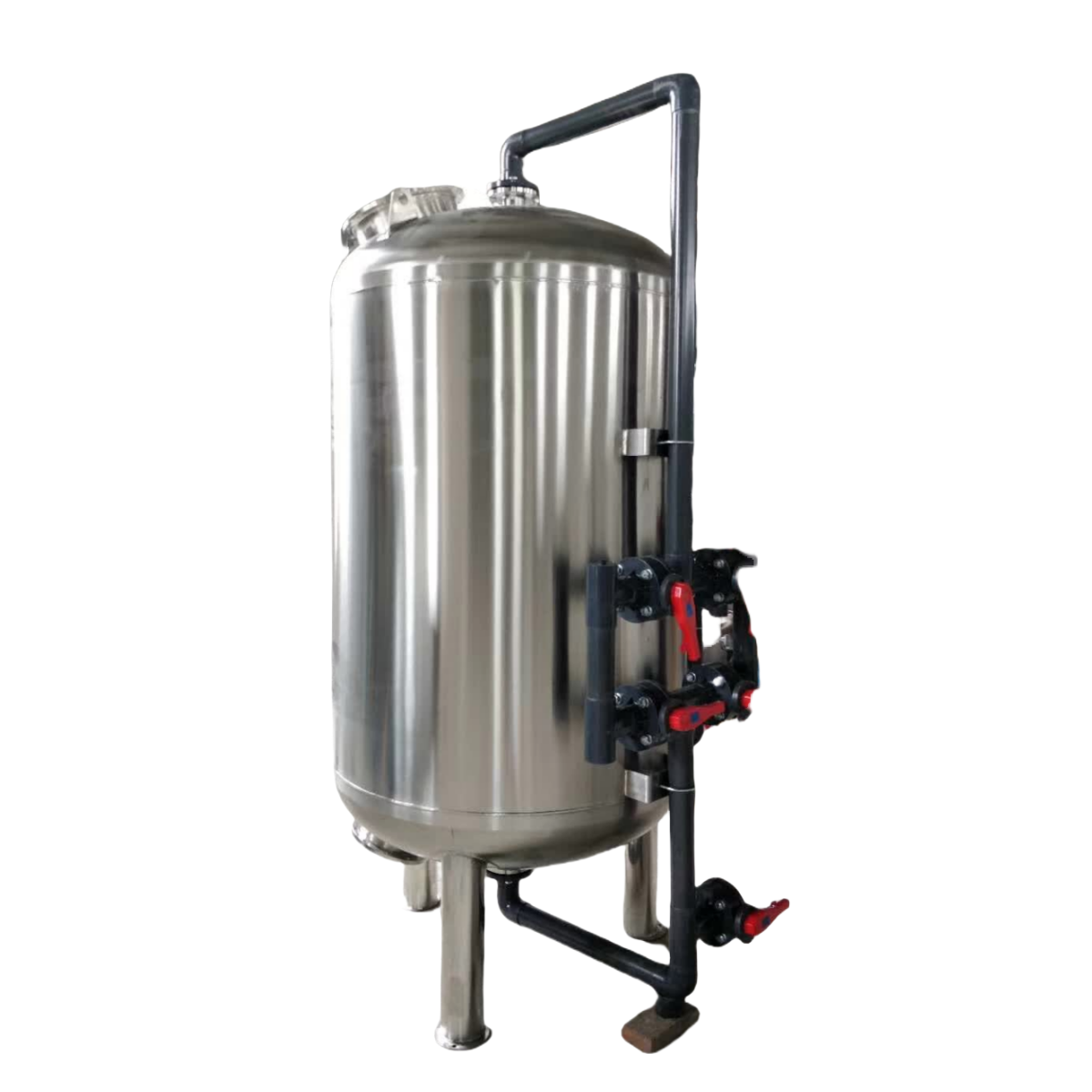

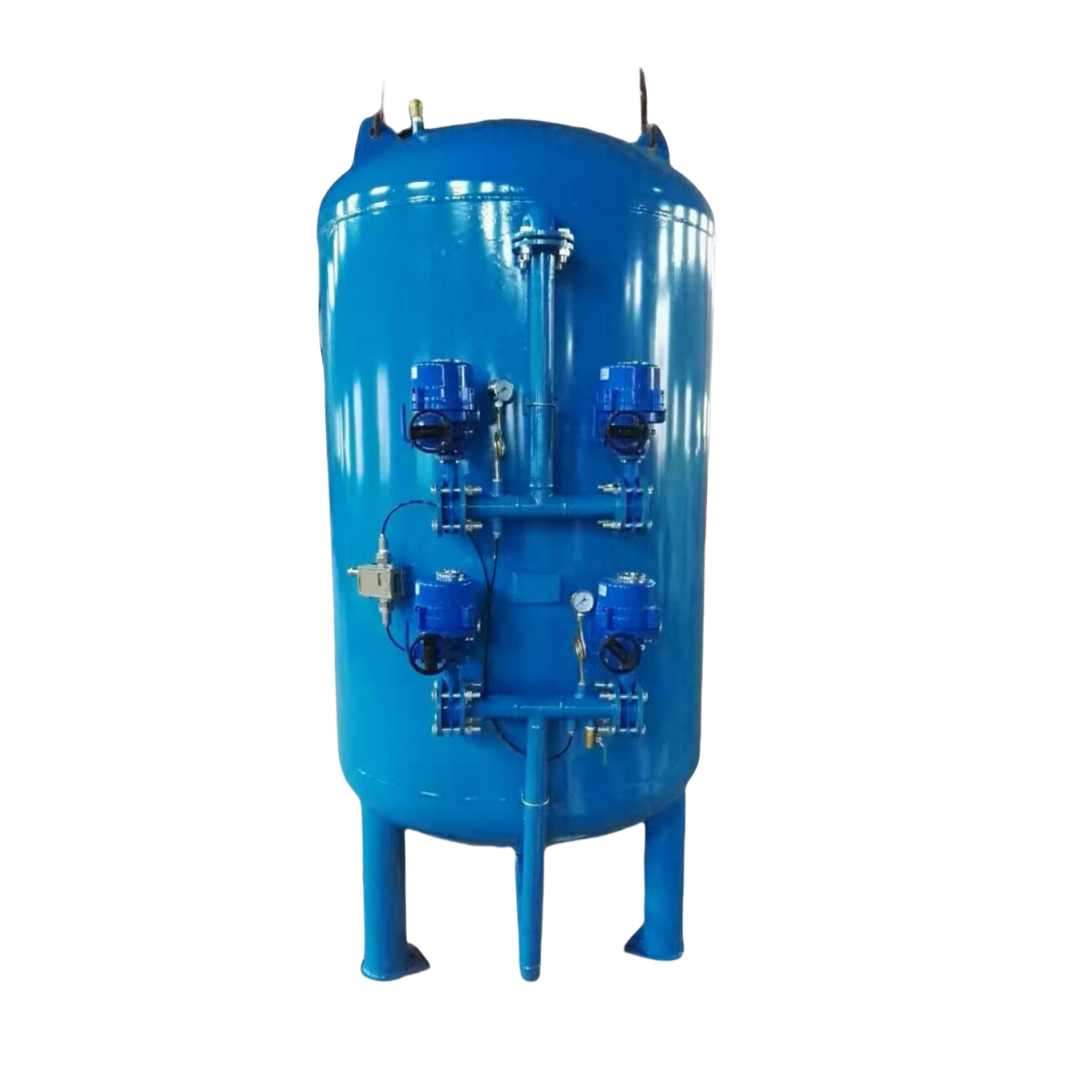

JX-SL24-2 Shallow Sand Filter
Respond to your needs within 10 minutes.
ASME/ CE/ TUV/ SGS/ BV Certification
Couldn't load pickup availability
The shallow sand filter is a high-performance water treatment device that uses quartz sand to effectively remove suspended solids, turbidity, and other impurities from water. Operated under pressure, water flows through a compact sand bed, achieving efficient filtration with minimal resistance.
Key Features:
-
High Filtration Efficiency: Effectively removes suspended solids, colloids, organic matter, iron, manganese, and microorganisms.
-
Low Resistance: Ensures high flow rates and energy savings.
-
Durable Media: Quartz sand offers strong resistance to acid, alkali, and fouling.
-
Self-Adjusting Filter Bed: Forms a layered structure (“loose on top, dense at bottom”) for stable performance across various raw water conditions.
-
Effective Backwashing: Ensures full media expansion and thorough cleaning.
Applications:
Widely used in power plants, electronics, municipal water, petrochemical, food & beverage, textiles, and swimming pool systems—for process water, domestic use, and wastewater polishing.
General Specification
| Item | Specification |
|---|---|
| Model | JX-SL24-2 |
| Total Capacity | ~30 m³/h |
| Material | Carbon steel/Stainless Steel/ Duplex Stainless Steel |
| Working Pressure | 0.6 MPa |
| Design Pressure | 1.0 MPa |
| Design Temperature | 80 °C |
| Dimensions (L×W×H) | 1640 × 703 × 1892 mm |
| Total Weight | ~500 kg |
