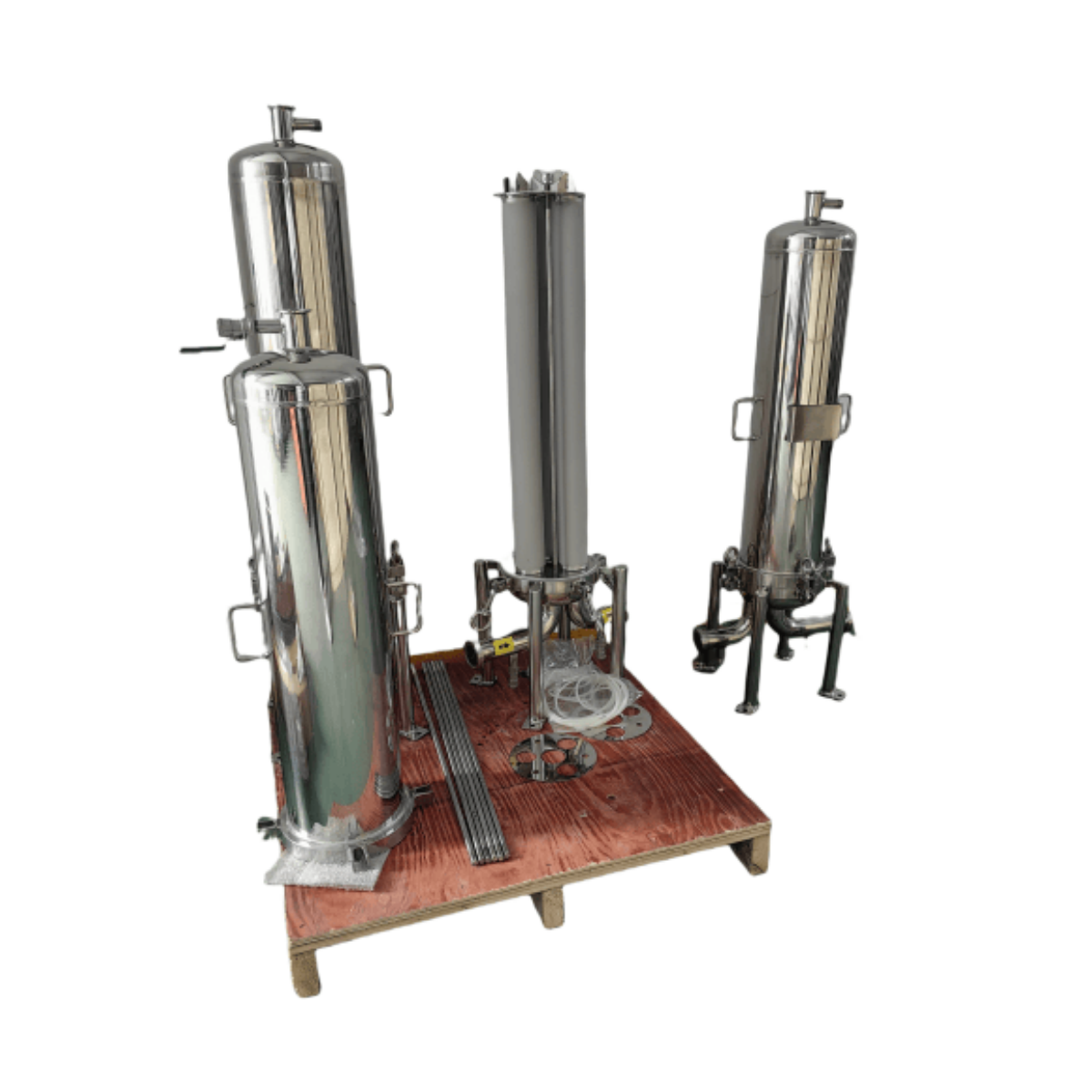

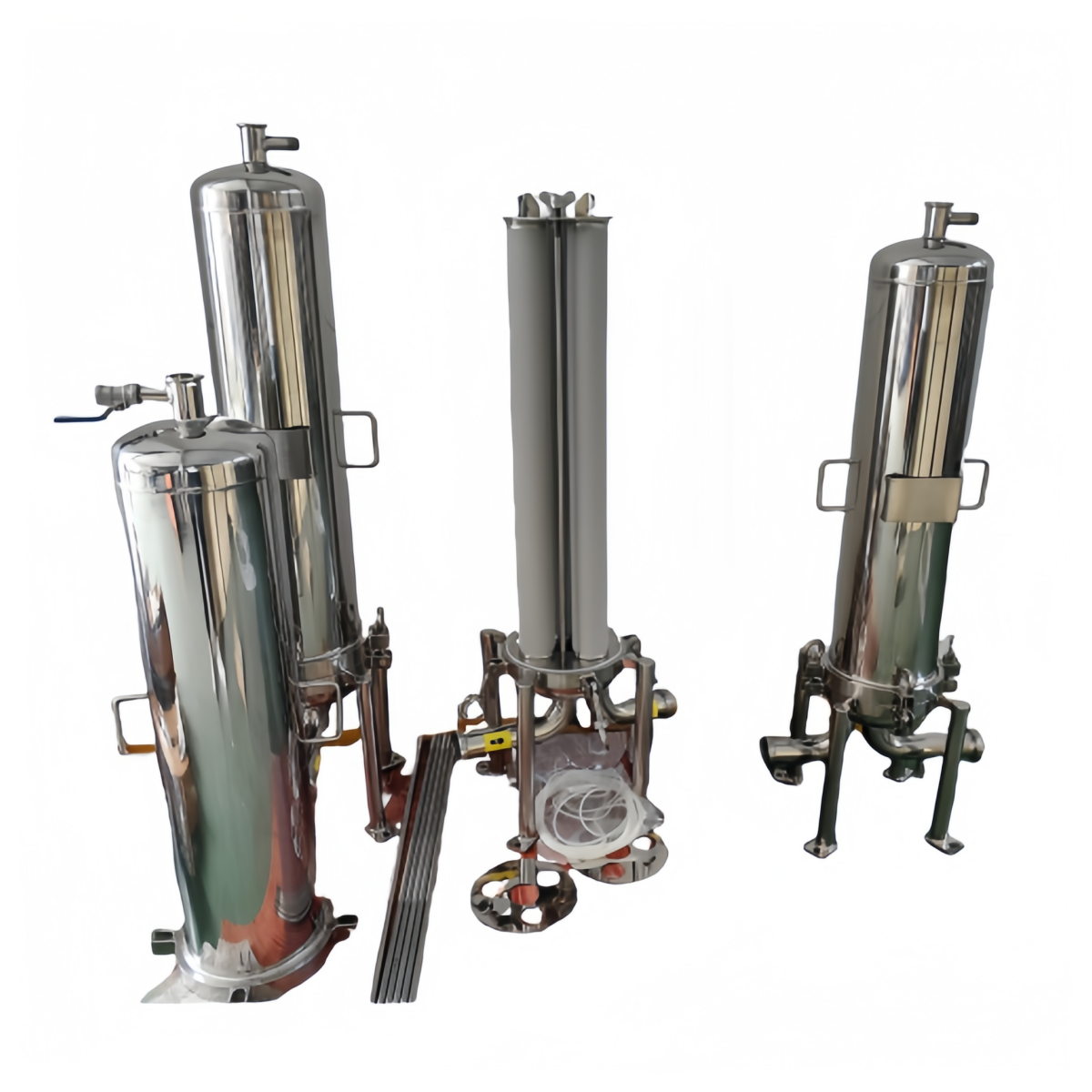

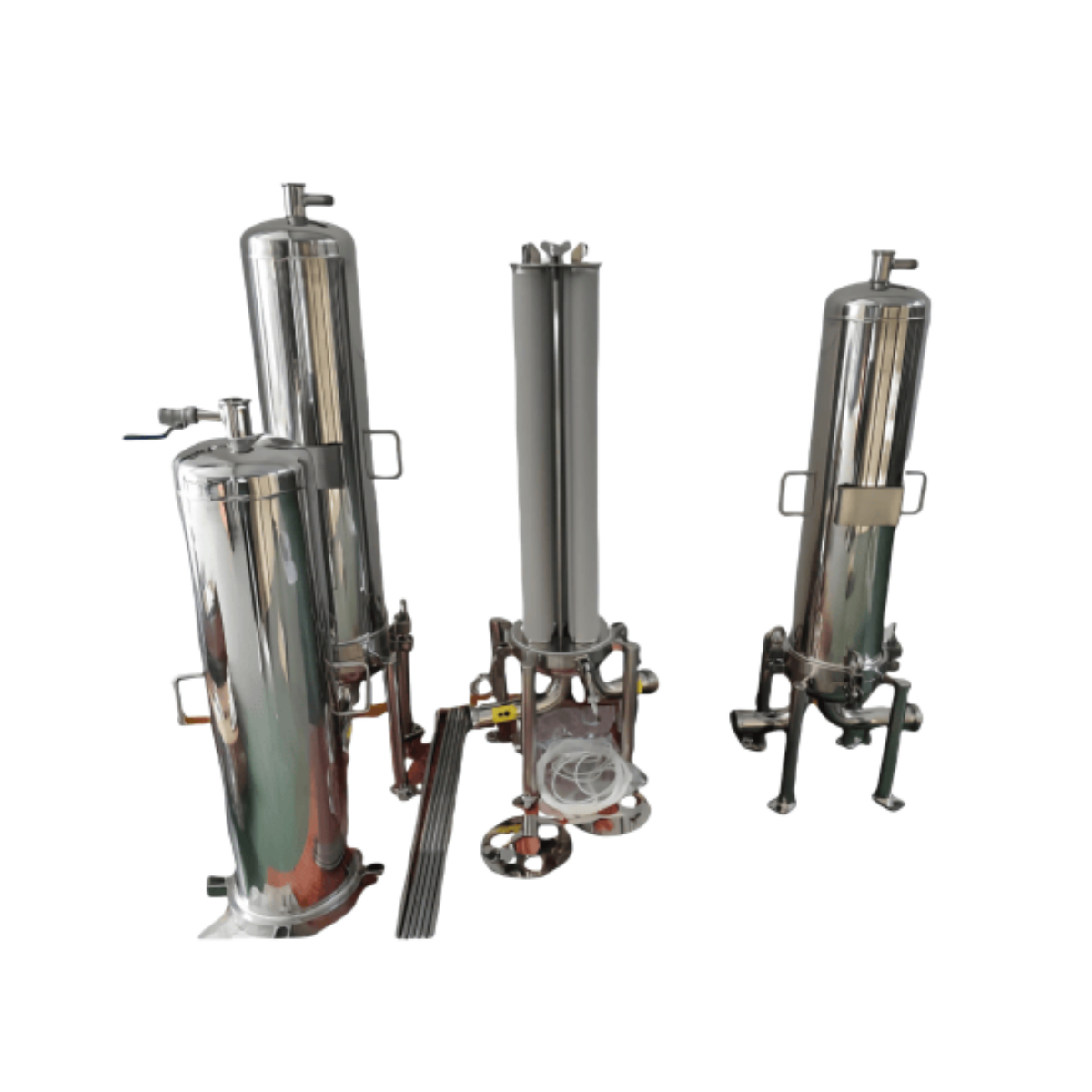

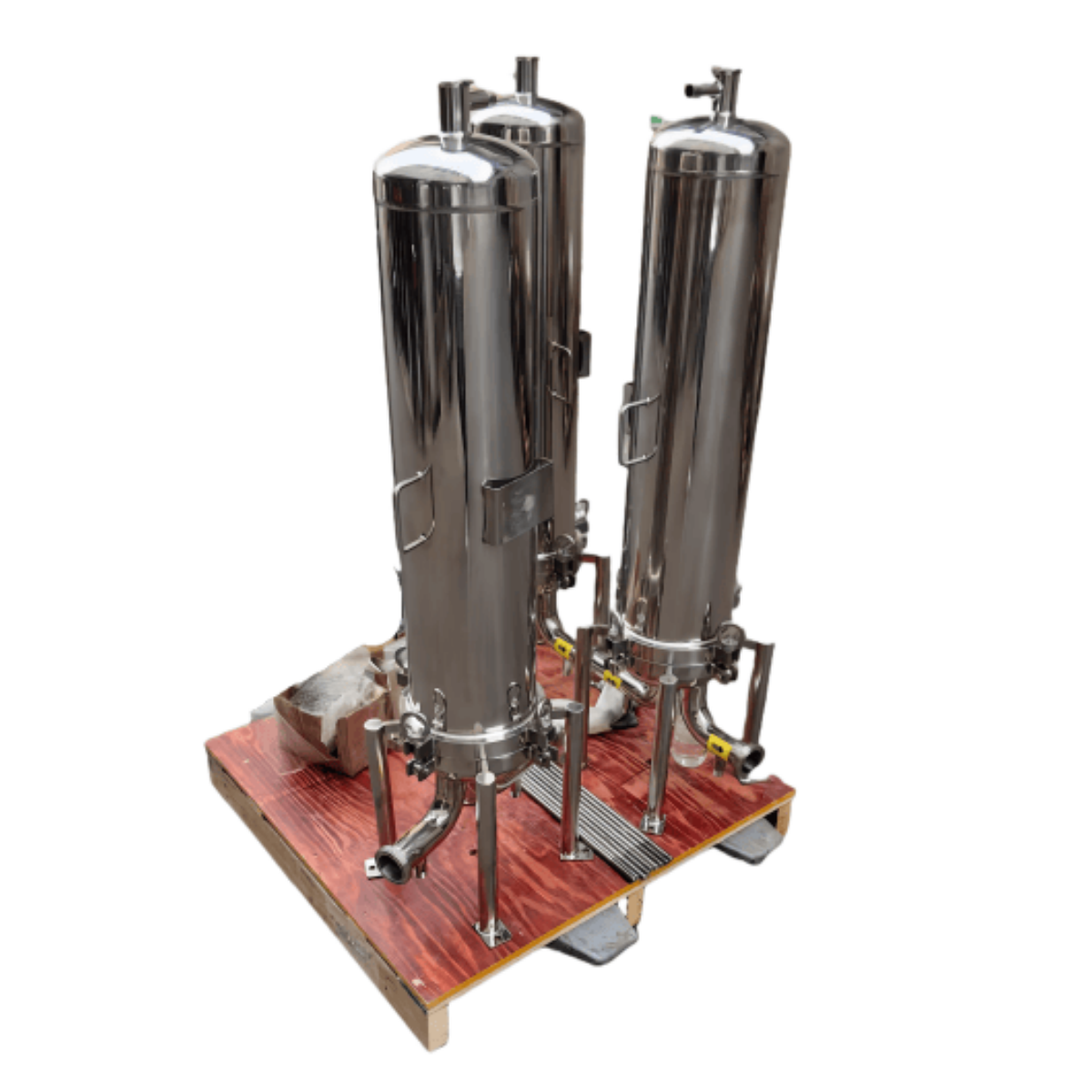

Stainless Steel 304/316 Cartridge Filter Housing

In the fields of industrial production, chemical manufacturing, water treatment, etc., efficient filtration systems are the key to ensuring product quality and stable operation of equipment. With its excellent filtration performance, large flow processing capacity, and stable structural design, the cartridge filter has become the preferred filtration solution for many industries.

Cartridge filters work by passing the liquid through the filter media, which captures and retains the solid particles while allowing the clean water to pass through. The filtered particles accumulate on the surface or within the depth of the filter media, and over time, this buildup can lead to a pressure drop across the cartridge. When the pressure drop becomes significant, it indicates that the cartridge needs to be replaced or cleaned to maintain filtration efficiency.

Technical Data

• Optional precision (um): 0.25-20microns
• Treatment capacity: 5-200m3/h
• Filter element length (inch): 10, 20, 30, 40, 60 or customized
• Number of single filter elements:1-30
• Shell material: SS304, SS316, CS, super duplex steel, etc.
• Applicable viscosity (cp): 1-500
• Design pressure (MPa): 0.6-1.0 (customized)
• Can be connected with 2-3 sets of equipment


Application

• Chemical industry: precision filtration of acid and alkali liquids, solvents, resins and other liquids.

• Food and beverage: clarification of syrups, juices, beer and other products.

• Electronic industry: preparation of ultrapure water, filtration of semiconductor cleaning liquids.

• Water treatment: interception of particles in industrial wastewater and circulating water.

The cartridge filter is made of high-quality stainless steel, which is corrosion-resistant and high-pressure-resistant and suitable for harsh working conditions. Its unique quick-opening structure design makes filter element replacement more convenient, reduces downtime, and improves production efficiency. In addition, the equipment has low operating resistance and low energy consumption, and long-term use can reduce operating costs.

Services

• Free design and drawing
• Free package
• Free installation and operation instruction
• Provide 1 pcs spare element (stainless steel sintered mesh except)
